solar water heater electrical heating element with thermostat 1.5KW - 3KW

Electric heating element

Flanged immersion heaters consist of hairpin bent tubular elements welded or brazed into a flange and provided with wiring boxes for electrical connections. Flange heaters are installed by bolting to a matching flange welded to the tank wall or nozzle. A wide selection of flange sizes, kilowatt ratings,voltages, terminal housings and sheath materials makes these heaters ideal for all types of heating applications

Product Description

• Electric heating is used as a backup heating method for solar water heaters, and is used when the hot water temperature does not meet the requirements for use.
• Electric heating has the function of temperature control to prevent dry burning, and will automatically stop heating when the temperature reaches the maximum.
• Electric heating should be installed and commissioned by a professional electrician.
• Leakage protection plug should be installed separately during electric heating installation.
• Electric heating can be controlled by the solar controller to start and heat, and the heating period should be set to avoid waste.
• When someone uses a solar water heater, it is strictly forbidden to turn on electric heating to avoid a safety accident.
• Disconnect the power when the electric heating is not in use.
• Install electric heating should choose high quality cable of suitable diameter to avoid sharing with other equipment.
• At 220V, 1500W electric heating should choose 1.5 square copper core wire.

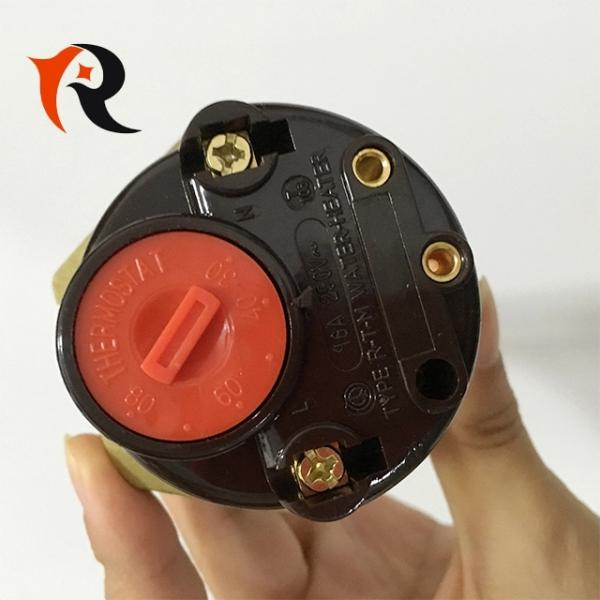

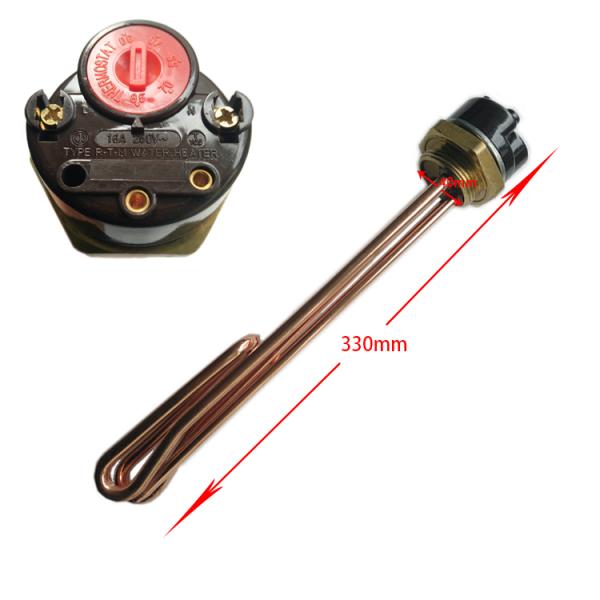

solar water heater electrical heating element with thermostat 1.5KW - 3KW Images
